Chipping

Chipping

Condition
  • Partial chipping of inner ring, outer ring, or rolling elements.
Cause
  • Trapping of large solid
  • Foreign objects impacts or excessive load
  • Poor handling
Solution
  1. Trouble shooting and improvements of impacts and excessive load
  2. Improvement in handling
  3. Improvement in sealing characteristics

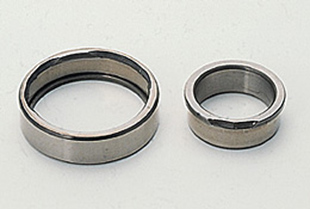

Photo: Cylindrical roller bearing

  • Cylindrical roller bearing
  • Chipping of guide ribs of inner and outer rings
  • The cause is excessive impact load.

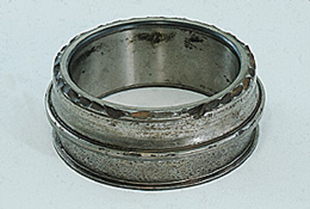

Photo: Inner ring of spherical roller bearing

  • Inner ring of spherical roller bearing
  • Rib chipped
  • The cause is excessive impact load.

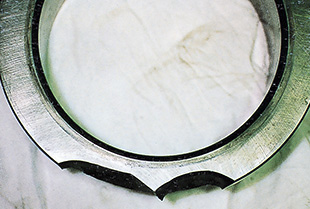

Photo: Inner ring of tapered roller bearing

  • Inner ring of tapered roller bearing
  • Chipping of cone back face rib
  • The cause is impact due to poor mounting.

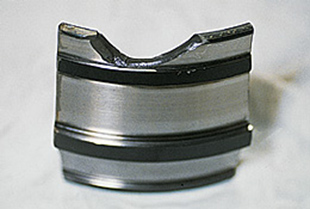

Photo: Inner ring of double row tapered roller bearing

  • Inner ring of double row tapered roller bearing
  • Chipping of side face
  • The cause is impact due to improper handling.
