Rolling Path Skewing

Rolling Path Skewing

Condition Cause Solution
  • Rolling element contact path on raceway surface strays or skews.
  • Deformation or tilt of bearing ring due to poor accuracy of shaft or housing
  • Poor rigidity of shaft or housing
  • Deflection of shaft due to excessive clearance
  1. Improvement in machining accuracy of shaft and housing
  2. Improvement in rigidity of shaft and housing
  3. Employment of adequate clearance

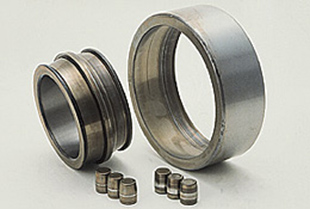

Photo: Spherical roller bearing

  • Spherical roller bearing
  • Contacts on inner ring, outer ring, and rollers are not even.
  • The cause is poor mounting.

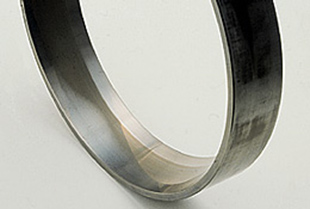

Photo: Outer ring of tapered roller bearings

  • Outer ring of tapered roller bearings
  • Contact path on raceway surface strays.
  • The cause is poor mounting.

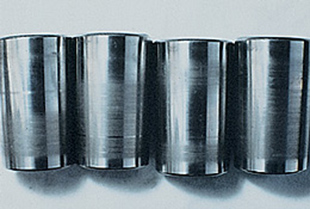

Photo: Rollers of tapered roller bearing of which outer ring is shown in Photo 7

  • Rollers of tapered roller bearing of which outer ring is shown in Photo 7
  • Contact marks on rolling contact surfaces are not even.
